RMX系列擴大器 |
|||||||||

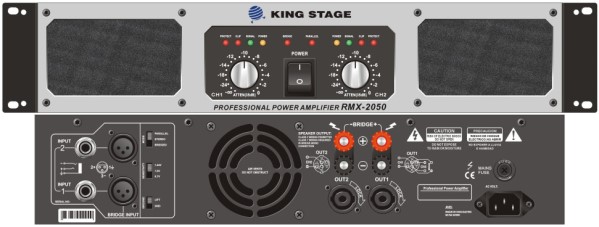

| RMX-2050 |

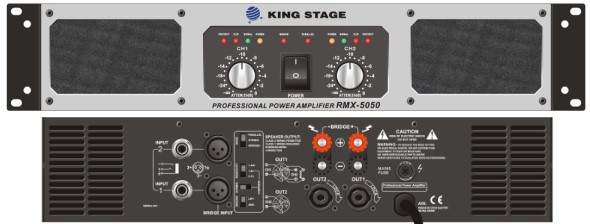

RMX-5050 |
||||||||
|
|
|
||||||||
|

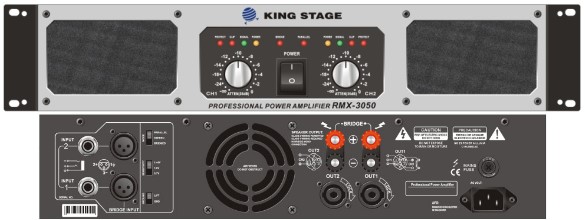

RMX-3050 |

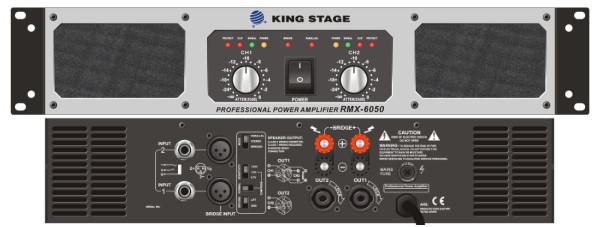

RMX-6050 |
||||||||
|
|
|
||||||||
|

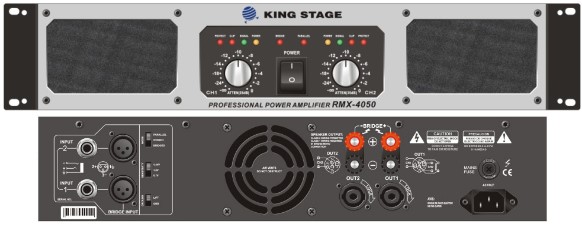

RMX-4050 |

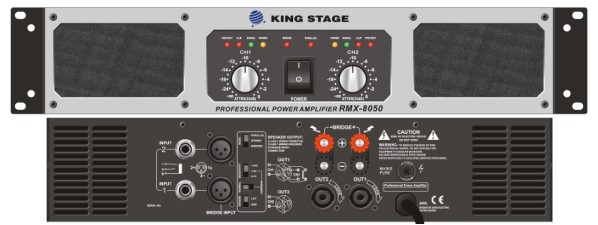

RMX-8050 |
||||||||
|
|
|
||||||||

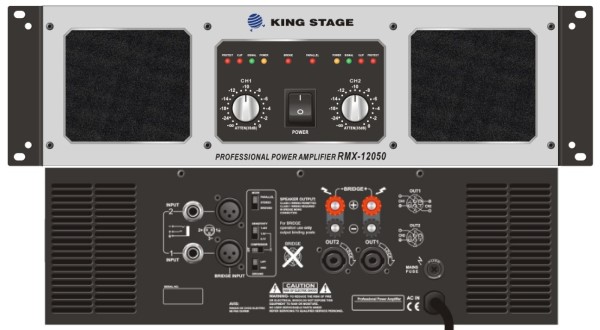

| RMX-12050 | |||||||||
|
|
|||||||||
| 規格表 specifications | |||||||||
|
Characteristic |
RMX-2050 |
RMX-3050 |
RMX-4050 |
RMX-5050 |
RMX-6050 |
RMX-7050 |
RMX-8050 |
RMX-12050 |
|
| Out Power(8Ω) |
2×200W |
2×300W |
2×400W |
2×500W | 2×600W | 2×700W |
2×800W |
2×1200W |
|
|
Out Power(4Ω) |
2×300W | 2×500W |
2×700W |
2×850W | 2×1050W | 2×1200W | 2×1350W |
2×1900W |
|
|
Out Power(2Ω) |
2×500W |
2×800W |
2×1000W |
2×1300W | 2×1400W | 2×1600W | 2×1800W | 2×2400W | |
|
Out Power (BRIDGE) (8Ω) |
650W |
1000W |
1250W |
1460W | 1750W | 2050W |
2300W |
3000W | |
|
Out Power (BRIDGE) (4Ω) |
950W |
1300W |
1700W |
1920W | 2300W | 2750W |
2900W |
4000W |
|
| Frequency Response |
5Hz~120KHz(±3dB) |
||||||||
|
THD+Noise@1KHz Full Pwr |
<0.001% |
<0.001% |
|||||||
| IMD 60Hz&7KHz,4:1 |
<0.001% |
<0.001% |
|||||||
| Signal to Noise Ratio |
>115dB |
>118dB |
|||||||
| Slew Rate(Input filter limited) |
40V/µS |
||||||||
| Damping Factor 1KHz@8Ω |
＞600:1 |
||||||||
|
Input Sensitivity |
SELECTABLE(0.77V/1.0V/1.44V) |
||||||||
|
Input Impedance |
44KΩ Balanced to ground |
||||||||
|
Input Connectors |
Female XLR-3 &6.35mm TRS jack |
||||||||
|
Output circuit type |
Class AB |
Class H |
Class AB |
Class H |
|||||
| Output Connectors |
4 Pole SPEAKON & Binding posts |
||||||||
|
Protections |
Full short-circuit. open-circuit, themal, Soft-start, DC voltage, Sub/Ultrasonic and RF |
||||||||
| LED Indicators(per channel) |
Power, Signal. Limit, Protect |
||||||||
| Panel Controls |
FRONT-2 input attenuators REAR-Ground lift,mode selection, compressor |
||||||||
| Cooling |
Front-to-Back via 2 variable-speed fans |
||||||||
| Power supply voltage |
120V AC-60Hz |
||||||||
| Power Supply fuse(250) |
5A |
8A |
8A |
10A |
12A |
15A |
15A |
20A |
|
| Dimension(mm)W×H×D |
482×88.8×383 |
482×88.8×440 |
482×132×440 |
||||||
| N Weight/g weight(kg) |
14/15.5 |
15.5/17 |
16.5/18 |
23/24.5 |
25/26.5 |
26/27.5 |
26/27.5 |
33/36 |
|
