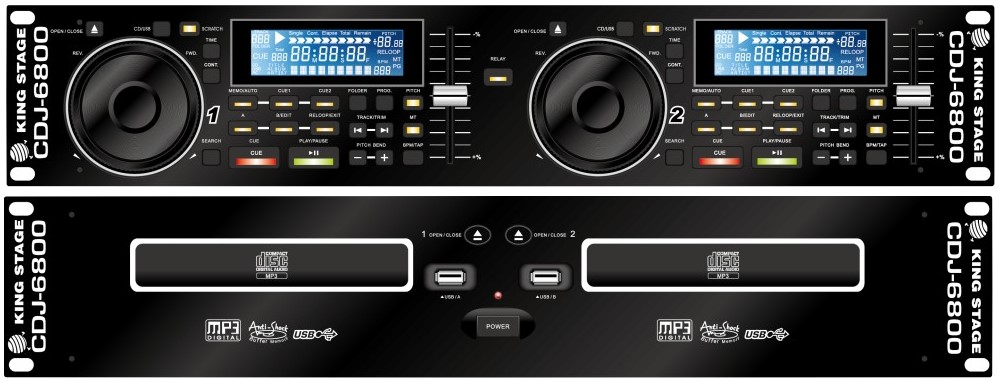

CDJ-6800 雙CD
|
|
 |
|
|
|
|
•完全獨立的雙通道播放器 |
Dual CD player |
|
•全面兼容MP3、CD、CD-R、CD-RW光碟播放 |
Compatible with
MP3、CD、CD-R、CD-RW
format CD playback |
|
•可讀取USB介面之MP3音樂格式 |
Support MP3 file playback in USB dumb drive. |
|
•方便、輕鬆的選曲、播放/暫停、復位操作 |
Track selection, play/pause, reverse |
|
•播放器自動跳至音樂開始處 |
Master Cue |
|
•大螢幕LCD液晶顯示 |
LCD display |
|
•時間保留跟蹤到後退時間跟蹤之交換顯示。 |
(Time:
Single Elapsed and Single Remain) |
|
•播放結束前30秒鐘提示
|
Notification on display 30 seconds before playing song
ends. |
|
•個性化轉盤操作快放慢放的播放模式 |
Fast Search forward or backward via
wheel |
|
•99首歌曲的容量編程 |
Program Edit Function: 99 songs memory |
|
•個性化播放速度調整功能 |
Master Tempo |
|
•電子防震功能（CD/MP3:15秒） |
Anti-Shock (CD/MP3: 15 seconds) |
|
•Open/Close按鈕在播放模式下的鎖定 |
Open/close lock function during play mode |
|
CDJ-6800 規格表 / Specifications |
|
|
1 bit linear/Channel, 3 Beam Laser |
|
過採樣率 Oversampling rate |
8 Times |
|
取樣頻率 Sampling Frequency |
44.1 kHz |
|
頻率響應 Frequency response |
20 Hz to 20 kHz ±2db |
|
失真率 T.H.D. + NOISE |
Less Than 0.03% |
|
信噪比 S/N ratio (IHF-A) |
> 75 dB |
|
動態範圍 Dynamic range |
> 75 dB |
|
輸出電平 Output level |
1.9 Volts R.M.S. ±0.2V |
|
光碟種類 Disc Type |
Standard Compact discs, AUDIO CD, CD-R & MP3 CD-ROM (MP3 files) |
|
時間顯示 Time Display |
Track Elapsed, Track Remain, or Total Remain |
|
本文型式 Text Mode |
Text Mode – displays CD-TEXT and ID3 tag information |
|
速度控制範圍 Pitch control range |
± 8%, 16%,100% slider |
|
MP3
Format |
|
|
DISC |
USB Devices |
|
Applicable file extensions |
.MP3
.mp3 .Mp3 .mP3 |
|
File Systems Compatible |
ISO9660 |
FAT , NTFS , HFS+ |
|
CD-ROM sector / HD Capacity |
mode-1 , mode-2 |
Max. 2000Giga byte |
|
Folder / directory level |
Max. 8 levels down |
|
Max. number for partition |
Max. 16 Partitions |
|
Max. number for folders |
Max. 999 folders |
|
Max. number for files |
Max. 999 files |
|
MP3 format |
MPEG1
layer3
32-320kbps , f/s 32K 44.1K 48K
MPEG2
layer3
40-1600kbps , f/s 16K 22.05K 24K |
|
Encording |
(VBR/CBR) |
|
ID-3 Tag |
Ver. : V1.0 , V1.1 , V2.2 , V2.3 ,V2.4 |
|
|
|
電壓(可轉換) |
AC120V/220V,
60Hz/50Hz
|
|
消耗功率 |
25W |
|
環境溫度 |
+5°C-+35°C |
|
播放機尺寸(mm) |
(W)482×(H)88.5×(D)245mm |
|
控制面板尺寸(mm) |
(W)482×(H)88.5×(D)50mm |
|
重量 |
8.7KG |
|
