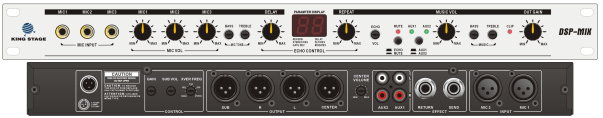

DSP-MIX
數位混音效果前極
規格表/SPECIFICATIONS |
|
Input Sensitive |
Mic 6mV/4KΩ |
|
Input Sensitive |
Aux 280mV/30KΩ |
|
Frequency Response |
Mic 40Hz~15KHz ± 6dB |
|
Frequency Response |
Music 20Hz~20KHz ± 3dB |
|
Music |
Bass ±10dB (100Hz) |
|
Music |
Treble ±10dB (20KHz) |
|
Mic |
Bass ±10dB (100Hz) |
|
Mic |
Treble ±10dB (16KHz) |
|
THD (1KHz, -3dB, 8Ω) |
0.03% |
|
Effect |
99 Digital Reverberation |
|
Output Level |
2.8V/1KΩ |
|
Voltage |
AC 12Vx2 650mA |
|
Power Supply |
AC110V 60Hz |
|
Power |
25W |
|
Dimensions |
(W)482mm x (H)45mm x (D)147mm |
|
Weight |
2.32Kg |
 |
|
