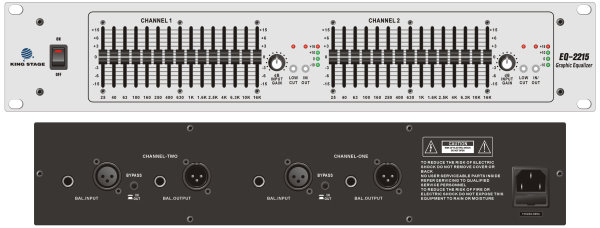

EQ-2215規格 |
|
Frequency Bands |
2 x 15
2/3 octive,Iso Spacing |
|
Inputs |
R F
Filtered,Servo-Balanced input |
|
Input/Output Type |
2Balanced XLR and unbalanced 1/4" |
|
Input
Impedance |
20K
ohms Unbalanced 40K ohms Balanced |
|
Output
Impedance |
330
ohms |
|
Frequency Response |
20Hz~20KHz±1dB |
|
S/N
Ratio |
>95dB |
|
THD |
0.05% |
|
Channel
Separation |
Better
Than 50dB |
|
Range
of Filter Control |
±12dB
Select |
|
Max.
Output Level |
+21dB |
|
Filter
Frequencies |
25Hz,40Hz,63Hz,100Hz,160Hz,
250Hz,400Hz,630Hz,1KHz,1.6KHz,
2.5KHz,4KHz,6.3KHz,10KHz,16KHz |
|
RANGE |
±6dB,±12dB |
|
Power
Consumption |
110V/60Hz |
|
Fuse |
0.2A/250V 5mm glass type |
|
Dimensions |
(W)482mm x (H)44mm x (D)150mm |
|
Weight |
3KG |
|
|
|
