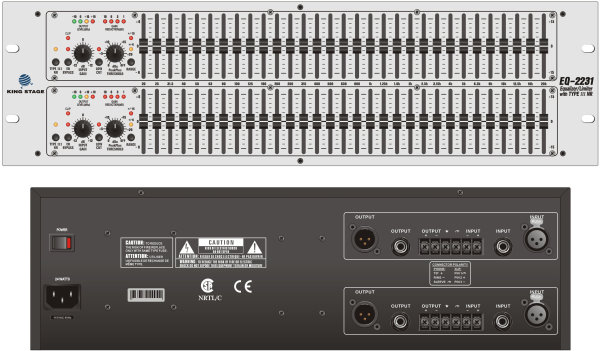

EQ-2231 規格 |
|
Inputs |
|
|
Connectors |
1/4”
TRS, female XLR(pin 2 hot), and barrier terminal strip |
|
Type |
Electronically balanced/unbalanced,RF filtered |
|
Impedence |
Balanced 40KΩ,unbalanced
20KΩ |
|
Max
input level |
>+21dBu
balanced or unbalanced |
|
CMRR |
>40dB,typically >55dB at 1KHz |
|
Output |
|
|
Connectors |
1/4”
TRS,male XLR(pin 2 hot), and barrier terminal strip |
|
Type |
Balanced/unbalanced,RF filtered |
|
|
Balanced 120Ω,unbalanced
60Ω |
|
Max
output level |
>+21dBu
balanced/unbalanced into 2KΩ
or greater |
|
Impedance |
>+18dBu
balanced/unbalanced(into 600Ω) |
|
Operating Voltage |
110VAC 60Hz |
|
Power Consumption |
20W |
|
Mains Connection |
IEC
receptacle |
|
Dimensions |
(W)482mm x (H)133mm x (D)150mm |
|
Weight |
4.8
kg |
|
|
|
