Product Model:  SGC 568
¡@



¡@
¡@
TAKSTAR SGC568 is a professional electret condenser interview microphone. The design of two electret elements processed by its bulit-in circuit and the features of two switchable polar patterns (cardioid and hypercardioid) allow the microphone to be used with confidence in a variety of miking applications. The cardioid setting yields a wider pattern well-suited to close-range pickup of large groups such as public-addresses, musical instruments amplifying, as well as indoor interviews work; The hypercardioid "Tele" setting gives a long narrow pattern which is ideal for isolating sounds at a distance, which is suitable especially for outdoor interviews.

The coppery microphone housing is spray painted. Rotate the rear of the microphone housing and take it off, then you may replace the batteries conveniently. This unit is packed in an aluminum carrying case which provides the convenience of easy carrying. Its standard package includes: Spring cable - 1pc; Special windscreen sponge - 1pc; Special bag - 1pc.



¡@
¡@
¡@
¡@
Element: Back Electret Condenser
Polar Pattern: Cardioid/Hyper-cardioid

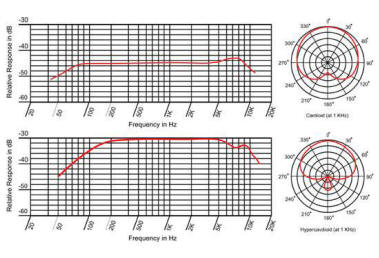

Frequency Response: 50Hz-16kHz/60Hz-14kHz
Sensitivity: -45dB/-30dB¡Ó3dB (0dB=1V/Pa at 1kHz)
Output Impedance: 500£[/1600£[¡Ó30% (at 1kHz)
Max. Input SPL: 136dB (at 1kHz ≤1% T.H.D)
S/N Ratio: 66dB
Power Requirement: AA/UM3,1.5V
¡@
¡@
¡@
