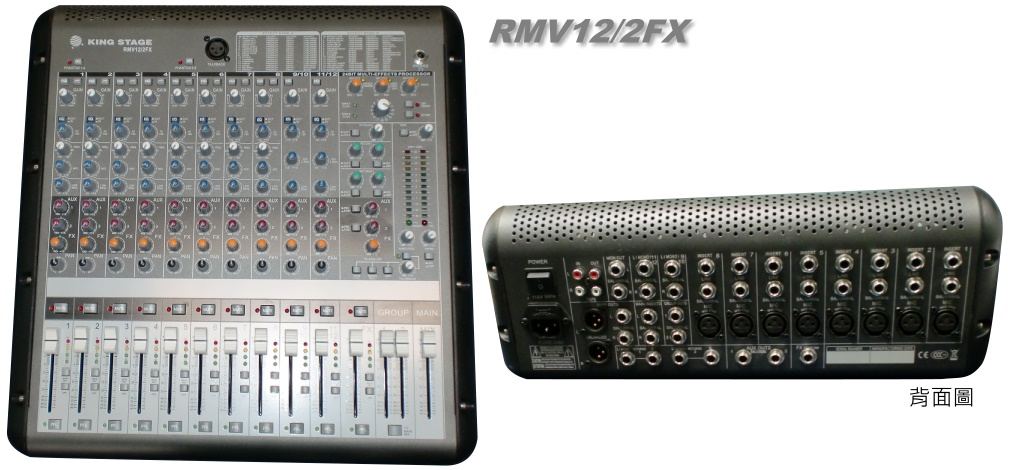

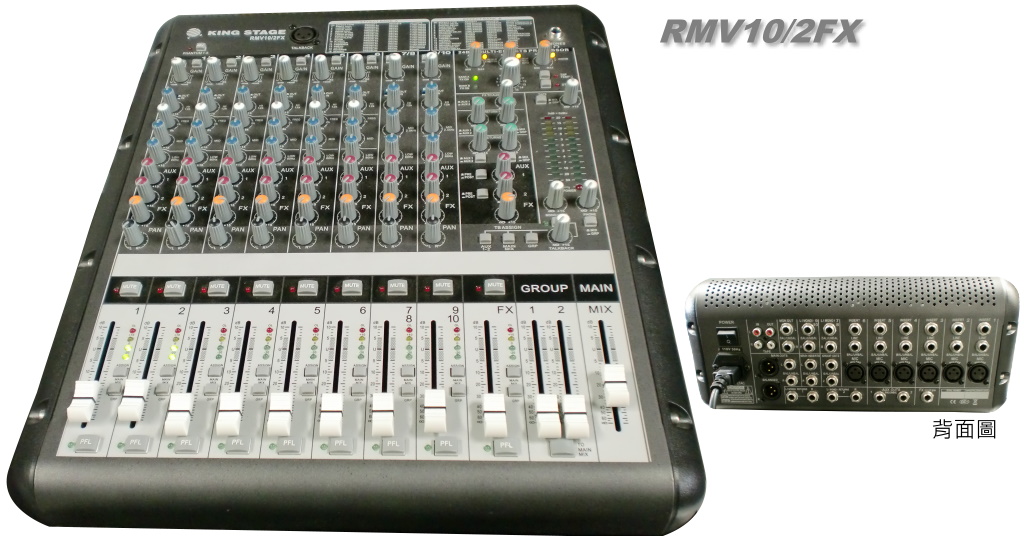

規格表 / Specifications    ■ RMV10/2FX    ■ RMV12/2FX

Mic Input to Main Output (Gain @ Unity)

+0, -1 dB, <10 Hz to 80 kHz

+0, -3 dB, <10 Hz to 120 kHz

Mic Input to Main Output (@ +4 dBu)

THD: <0.007% 20Hz to 20kHz

         0.003% @ 1kHz typical

SMPTE IMD: <0.005% (7 kHz/ 60 Hz, 4:1)

Signal-to-Noise Ratio:

-87 dBu (ref, +4 dBu, Mic In to Main Out,

32 channels and Main Mix levels at unity)

-89 dBu (ref, +4 dBu, Mic In to Main Out,

24 channels and Main Mix levels at unity)

Equivalent Input Noise (E.I.N.), 20 Hz to 20 kHz Bandwidth, 150Ω source impedance:

-129.5 dBu @ +60 dB gain

Mic Output Noise:  Direct Output: -100dBu (minimum gain)

Residual Output Noise:

Main Out: -100 dBu (Channel and Main Mix levels off)

Main Out: RMV12/2FX,-85 dBu (12 channels and Main Mix levels at unity)

RMV10/2FX,-85 dBu (10 channels and Main Mix levels at unity)

Mic In: 0 dB to +60 dB

Line In:-20 dB to +40dB, mono channels

Mono Channel EQ:

           High: ±15 dB @ 12 kHz

           FREQMid: ±15 dB, sweepable from 100 Hz to 8 kHz

                 Mid: ±15 dB

           Low:±15 dB @ 80 Hz

Stereo Channel (Aux Input) EQ:

           High:±15 dB @ 12 kHz

           Mid:±15 dB @250 Hz

           Low:  ±15 dB @ 80 Hz

Main Outs:   +4 dBu

Aux Send:    +4 dBu

Group Send:+4 dBu

Monitor Out: +4 dBu

Maximum Rated Output: +21 dBu @ Main XLR and TRS outpus

Mic Input:     +21 dBu, Gain @ unity, pad out

Mic Input:     +30 dBu, Gain @ unity, pad in

Line Input:   +21 dBu, Gain @ -20 dB

Tape Input:  +30 dBu

Stereo Return: +21 dBu

Mic Input:                          3 kΩ, balanced

Mono Channel Line Input:        34 kΩ balanced

Stereo Returns:                20 kΩ balanced

Talkback Mic:                   1 kΩ balanced

Main Out:100 Ω balanced, XLR outputs;

                300 Ω TRS outputs

Group Out: 300 Ω

Monitor Out: 300 Ω

Aux Sends:  300 Ω

Phones Out:25 Ω

Main Left and Right, Input, 12 segments:

Clip (+20), +15, +10, +6, +3, 0, -2, -4, -7, -10, -20, -30

0 LED = 0 dBu

AC Power Requirements

Power Consumption: 50 watts

Universal AC Power Supply:110V/60Hz

RMV10/2FX 370mmX150mmX470mm

RMV12/2FX 420mmX150mmX470mm

RMV10/2FX  10kg

RMV12/2FX  11kg
