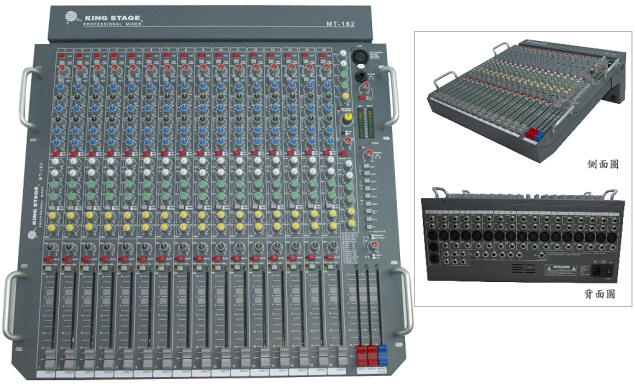

最大輸出電平 |
Maximum
output level |
XLR +26dBu
into 600 ohms max load
Jack
+21dBu into 2kΩ
max load |
|
內部餘裕範圍 |
Internal
headroom |
Channels
+21dB
Mix +23dB |
|
電平顯示 |
Meters |
3 color
LED, 準峰值反應 |
|
靈敏度 |
Sensitivity |
0VU =
+4dBu at XLR output |
|
主輸出顯示 |
Master
meters |
12段
-30 dB ~+16dB |
|
單軌顯示 |
Channel
meters |
2段
-12dB及+16dB |
|
頻率響應 |
Frequency
response |
20Hz to
50kHz ±0.5dB |
|
總諧波失真 |
THD+n at
+10dBu 1kHz |
Channel to
mix out < 0.004% |
|
串音 |
Crosstalk
at 1kHz |
推桿音量關閉
>90dB
通道靜音
>100dB
內部通道
>90dB |
|
雜訊比 |
Noise rms
22Hz to 22kHz |
Mic EIN
-128dB
輸出殘留雜訊比
< -95dBu (-99dB S/N)
LR
推桿混音雜訊比
< -83dBu (-87dB S/N) |
|
每聲道高通濾波 |
Channel
HPF |
12dB/octave 80Hz |
|
單音聲道等化器 |
Mono EQ |
HF
曲柄型
±15dB, 12kHz
HM
峰值型±15dB,
500Hz to 15kHz, Q=1.8
LM
峰值型±15dB,
35Hz to 1kHz, Q=1.8
LF
曲柄型±15dB,
80Hz |
|
立體聲道等化器 |
Stereo EQ |
HF曲
柄型±15dB,
12kHz
HM峰值型±15dB,
2.5kHz, Q=1.8
LM峰值型±15dB,
250Hz, Q=1.8
LF曲
柄型±15dB,
80Hz |
|
電源供應交換式電源 |
Power
supply |
100-240V,
47/63Hz 自動判斷
消耗功率：45W
max
保險絲：T
1A/250V |
|
上機櫃後接盤收回 |
Rack
mounted
Underside
connectors |
(W×H×D)
483×444×122
10U |
|
上機櫃後接盤打開 |
Rack
mounted
Rear
connectors |
(W×H×D)
483×193×497
11.2U |
|
重量
|
Weight |
10kg |
|
CONNECTIONS |
|
單音聲道 |
Mono channel |
XLR balanced pin 2 hot Sensitivity -60 to +10dBu
TRS balanced, tip hot Sensitivity -40 to +10dBu
Pad out (MIC)：2kΩ
Pad in (MIC or LINE)：>10kΩ,
-20dB
Max input level：+30dBu
XLR phantom power：+48V,
on/off |
|
立體聲返饋 |
Stereo returns |
ST1 TRS balanced >10kΩ
-6 to +20dBu
ST2 TRS unbalanced >2kΩ,
-2 to +20dBu |
|
單軌迴路孔 |
Inserts |
Channel：TRS,
tip send, ring return, 0dBu
Output :TRS, tip send, ring return, -2dBu |
|
左右監聽輸出 |
L, R, M outputs |
XLR balanced pin 2 hot <75 ohm, +4dBu, +26dBu max |
|
輔助1-6輸出 |
Aux 1-6 output |
TRS impedance balanced <75 ohm, -2dBu, +21dBu max
Electronic balance option <75 ohm, +4dBu, +26dBu max |
|
直通輸出
|
Direct out |
TRS impedance balanced <75 ohm, 0dBu, +21dBu max |
|
AB組輸出
|
AB out |
TRS impedance balanced <75 ohm, -2dBu, +21dBu max |
|
耳機輸出 |
Headphones |
TRS, tip L, ring R, 30 to 600 ohm headphones recommended |
|
照明燈 |
Lamp |
4-pin XLR max 12V 5W lamp |
