SC-080 電源順序開關

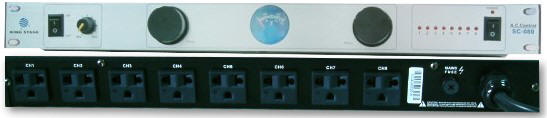

KING STAGE SC-080  使用在一個完全的音訊、視訊或是電腦系統,以便在正確的順序下用一個開關鈕來執行自動開機或關機功能,前板有開關,背板有8個電源插座裝置,背板的供應電源以短短的延遲時間而關機,當關閉時,切斷背面的電源供應,SC-080是可以解決電源供應問題的絕佳設備。



        The best equipment for solving power supply problems. The KING STAGE Sequence Controller allows a whole audio, video, or computer system, to be power up in the correct sequence from the flick of one switch.Front panel switch, 8 AC sockets in rear panel. Supply power to its rear panel is ascending order with a short delay time.Cut off the power supply in reverse when switch off.



SPECIFICATIONS / 規格表

輸入電源供應   Supply input voltage: A.C. 110V
輸出電源供應  Supply output voltage: A.C. 110V
輸出總電流      Output current: 25A
控制器輸出頻道 Control output channels: 8ch
延遲時間          Delay time: 1sec.
尺寸                 Dimensions (H×W×D): 49×482×265mm
重量                 Weight: 3.5kg
