規格表 /
Specifications

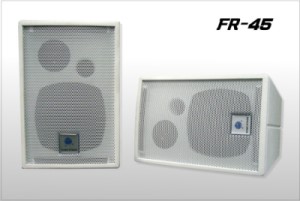

FR-45
顏色：白色、黑色 |
|
頻率響應 |
Frequency Response |
80Hz-20KHz(±3dB) |
|
頻率下限 |
Low Frequency Limit |
70Hz (-10dB) |
|
單元組成 |
Drivers |
1×4.5”(130mm)/1”(25mm)voice
coil LF driver |
|
1×0.5"(13mm)compression driver |
|
額定功率 |
Rated Power |
50W r.m.s
,200W peak |
|
推薦使用功率 |
Recommended Amplifier |
100W-400W |
|
靈敏度 |
Sensitivity |
89dB/1m/1w |
|
額定阻抗 |
Impedance |
6Ω |
|
分頻點 |
Crossover Frequency |
3KHz |
|
吊裝附件 |
Fittings |
2×M6 inserts for
wall bracket |
|

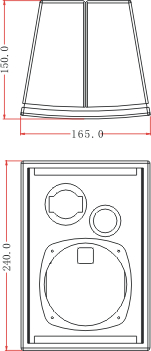

尺寸W×H×D(mm) |
Dimensions |
寬165×高240×深150 |
|
重
量 |
Weight |
2.3kg |
|
