KTV-110PA



KTV-110PA10”的低音單體,30W-240W的有效功率,15mm的密集板,黑色烤漆箱體,絕對是睿智的您在設計音響系統時的上上之選,低頻鏗鏘有力,斷點乾淨,而且有豐沛的聆聽感覺,通透、清脆的中高音,讓您置身其中渾然忘我,這樣的喇叭,集所有優點於一身,不用它、不聽它,太對不起自己了。



KTV-110PA, 10” bass unit, 30W-240W effective power output generated from 15mm condensed board speaker case. Certainly, the black lacquer sound box is the best choice for you to build a integrated sound system. Lost in sturdy and clear-cut low frequencies, you hear nothing but the best possible sound you never get. The speaker attracts all the advantages, without them, you will fail yourself by all means. (Do remember KTV-110PA could be hung over!)

KTV-110PA(W)

類型: Type: 10" 3-way full range speaker system
元件: Compoents: 1×10" LF driver,1×4" MF tweeter
    1×3" HF tweeter
頻率響應: Frequency response:  25Hz~22kHz(±3dB),12Hz~24kHz(±6dB)
擴散角度: Dispersion: 100°×100°(H×V±3dB), 130°×130°(H×V±6dB)
靈敏度: Sensitivity: 95db 1m/1w
最大音壓: Maximum spl: 118db
承受功率: Power rating: 120w r.m.s, 240w program,480w peak.
分頻點: Crossover frequency: 800Hz MF 7kHz HF
阻抗: Impedance: 8 ohms nominal

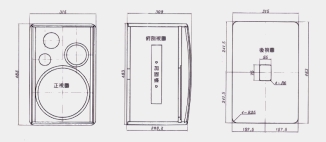

外型尺寸(長××寬) Dimensions W×D(mm) 315×483×309(mm)
重量: Weight: 13kg
