MLA-5002 |
|
頻率響應 |
Frequency Response |
45Hz-18KHz±(3dB) |
|
單元組成 |
Drivers |
8×5”(125mm)/1.5”(35mm)voice coil LF drivers
4×1”exit(25mm) compression drivers |
|
額定功率 |
Rated Power |
400W
r.m.s,1600W peak |
|
靈敏度 |
Sensitivity |
96 dB 1watt/1metre |
|
最大聲壓級 |
Maximum SPL |
122 dB continuous, 128dB peak |
|
額定阻抗 |
Impedance |
4Ω |
|
擴散角度 |
Dispersion |
120°×40°
|
|
分頻點 |
Crossover Frequency |
900 Hz ,2.2kHz passive |
|
輸入方式 |
Connectors |
2×NL41+1- |
|

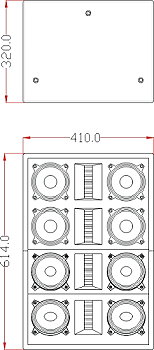

尺寸W×H×D(mm) |
Dimensions |
寬410mm×高614mm×深320mm |
|
重
量 |
Weight |
32.5KG |
|
