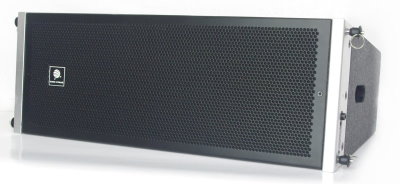

MLA-6002 |
|
頻率響應 |
Frequency Response |
110Hz-18kHz(±3dB) |
|
單元組成 |
Drivers |
2×6.5”(165mm)/2”(50mm)
voice coil LF driver
1×1”exit
(25mm) compression drivers |
|
額定功率 |
Rated Power |
200W
r.m.s,800W peak |
|
靈敏度 |
Sensitivity |
96 dB 1watt/1metre |
|
最大聲壓級 |
Maximum SPL |
119 dB continuous, 125dB peak |
|
額定阻抗 |
Impedance |
8Ω |
|
擴散角度 |
Dispersion |
Horizontal coverage:120°
Vertical coverage: Varies, depending on array
length and configuration |
|
分頻點 |
Crossover Frequency |
800Hz 2.5kHz passive |
|
輸入方式 |
Connectors |
2×NL41+1- |
|
尺寸W×H×D(mm) |
Dimensions |
寬550mm×高205mm×深303mm |
|
重
量 |
Weight |
14KG |
|
