規格表
/ Specifications

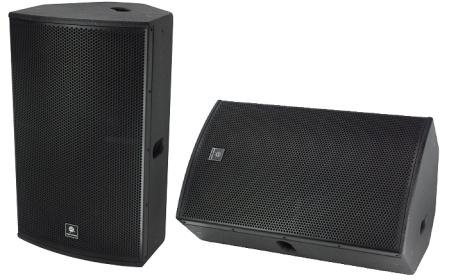

NUQ-15 |
頻率響應 |
Frequency Response |
40Hz-20KHz(±3dB) |
頻率下限 |
Low Frequency Limit |
35Hz(-10dB) |
單元組成 |
Drivers |
1×15”(380mm)/3”(75mm)voice coil LF driver |
|
|
1×1.4”(36mm) compression driver |
額定功率 |
Rated Power |
600W
r.m.s ,2400W peak |
靈敏度 |
Sensitivity |
98dB/1m/1w |
最大聲壓級 |
Maximum SPL |
124dB continuous,130dB peak |
額定阻抗 |
Impedance |
8Ω |
擴散角度 |
Dispersion |
90°×40° |
分頻點 |
Crossover Frequency |
1.5KHz |
輸入方式 |
Connectors |
2×NL4/1+1- |
吊裝附件 |
Fittings |
12×M8
inserts for wall bracket 1×Top hat fltting |
尺寸W×H×D(mm) |
Dimensions |
寬430×高385×深712(mm) |
重
量 |
Weight |
29kg |
|
