規格表
/ Specifications
NUQ-8 |
頻率響應 |
Frequency Response |
60Hz-20KHz(±3dB) |
頻率下限 |
Low Frequency Limit |
55Hz (-10dB) |
單元組成 |
Drivers |
1×8”(200mm)/2”(50mm)voice coil LF driver |
|
|
1×1”(25mm) compression driver |
額定功率 |
Rated Power |
250W r.m.s ,1000W peak |
靈敏度 |
Sensitivity |
93dB/1m/1w |
最大聲壓級 |
Maximum SPL |
115dB continuous,121dB peak |
額定阻抗 |
Impedance |
8Ω |
擴散角度 |
Dispersion |
90°×50° |
分頻點 |
Crossover Frequency |
2.8KHz |
輸入方式 |
Connectors |
2×NL4/1+1- |
吊裝附件 |
Fittings |
6×M8 inserts for wall bracket 1×Top hat fltting |

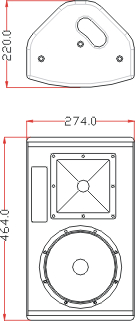

尺寸W×H×D(mm) |
Dimensions |
寬274×高464×深220(mm) |
重
量 |
Weight |
9.5kg |
|
